TALEN-mediated apc mutation in Xenopus tropicalis phenocopies familial adenomatous polyposis

This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

ABSTRACT

Truncating mutations in the tumor suppressor gene adenomatous polyposis coli (APC) are the initiating step in the vast majority of sporadic colorectal cancers, and they underlie familial adenomatous polyposis (FAP) syndromes. Modeling of APC-driven tumor formation in the mouse has contributed substantially to our mechanistic understanding of the associated disease, but additional models are needed to explore therapeutic opportunities and overcome current limitations of mouse models. We report on a novel and penetrant genetic cancer model in Xenopus tropicalis, an aquatic tetrapod vertebrate with external development, diploid genome and short life cycle. Tadpoles and froglets derived from embryos injected with TAL effector nucleases targeting the apc gene rapidly developed intestinal hyperplasia and other neoplasms observed in FAP patients, including desmoid tumors and medulloblastomas. Bi-allelic apc mutations causing frame shifts were detected in the tumors, which displayed activation of the Wnt/β-catenin pathway and showed increased cellular proliferation. We further demonstrate that simultaneous double bi-allelic mutation of apc and a non-relevant gene is possible in the neoplasias, opening the door for identification and characterization of effector or modifier genes in tumors expressing truncated apc. Our results demonstrate the power of modeling human cancer in Xenopus tropicalis using mosaic TALEN-mediated bi-allelic gene disruption.

INTRODUCTION

FAP is an autosomal dominant disorder characterized by the presence of hundreds to thousands of benign, adenomatous polyps in the colon, which over time can progress to malignant adenocarcinomas. FAP is caused by germline mutations in the APC gene. Different variants of FAP exist. In the Gardner syndrome (OMIM 175100, 135290), gastrointestinal adenoma formation is frequently accompanied by extra-colonic manifestations, such as congenital hypertrophy of the retinal pigment epithelium (CHRPE), desmoid tumors, osteomas, dental anomalies, epidermal cysts, and soft tissue tumors. In patients diagnosed with the Turcot syndrome (OMIM 276300), central nervous system malignancies, such as medulloblastomas, are also observed. Although prophylactic colorectal surgery significantly reduces the mortality associated with FAP, the other less penetrant signs and symptoms are becoming more clinically relevant, most prominently the desmoid tumors, which are hard to treat and are a major cause of death in FAP patients [1, 2]. Nonsense mutations in the APC gene underlie FAP, and these mutations are also observed in most sporadic colon cancers. Several mouse FAP models have been identified or generated [3], the most often used model being the Apc^Min mouse. Conditional models with floxed Apc alleles have also been generated [3]. Recently intestinal tumor formation has also been described in rats and zebrafish carrying ENU-induced mutant Apc alleles [4, 5].Mutations in the APC gene result in the expression of a truncated APC protein that causes ectopic constitutive activation of the Wnt/β-catenin pathway, which is seen as an important target for therapeutic intervention. Unfortunately, the Wnt pathway is notoriously difficult to target by small chemical compounds [6, 7]. Many screening efforts have so far not yielded any applicable drug urging the need for alternative animal models such as Xenopus that allow fast and reliable screening of novel therapeutics or potential therapeutic targets [8, 9].

Modeling human disease in non-mammalian vertebrates has been primarily restricted to zebrafish, which has been subjected to large-scale mutagenesis screens [10, 11]. Therefore, zebrafish is being increasingly used as a cancer model [12]. Until now, Xenopus has not reached the same status because it has been used mostly for transient approaches such as RNA and Morpholino injections. However, TALEN and CRISPR/Cas9 mediated genome editing is creating a revolution in the field of functional genomics [13], opening the door for many novel experimental approaches and strategies in numerous model organisms. It is easy and economical to make custom TALEN and CRISPR/Cas9 constructs, and the technologies are within reach of any laboratory with standard molecular biology facilities. Moreover, zebrafish and Xenopus are very suitable for knockout experiments because they develop externally and require simple injection setups, thus allowing cheap semi-high-throughput gene knock-out approaches. Importantly, unlike X. laevis and zebrafish, X. tropicalis has a true diploid genome and can therefore gain in importance for modeling human diseases, including cancer [14].

Here, we describe the first genetic cancer model in X. tropicalis. Using TALEN-mediated targeting of the mutation cluster region (MCR) of the apc allele, we developed a model that mimics the human FAP syndrome and remarkably recapitulates several of the tumor types observed in FAP patients. This model may pave the way for establishing other cancer models in X. tropicalis and for its use in pre-clinical drug screening.

RESULTS

Design and use of a TALEN construct targeting the apc MCR in Xenopus tropicalis

We first determined the domain structures of the X. tropicalis apc gene and its encoded protein. The structural and the functional domains of the frog APC protein are very similar to their human counterparts, including a potential N-terminal homodimerization domain, an armadillo repeat region, three repeats of 15 amino acids (aa), seven 20-aa repeats responsible for binding β-catenin, three SAMP repeats known to interact with axin, a microtubule-binding domain, and a C-terminal EB-1 binding region (Fig. 1A) [15]. Importantly, as in mammals, the last exon of the apc gene is very long, encoding three-fourths of the protein. Therefore, nonsense or frame-shift mutations in the sequence downstream of the armadillo repeats escape nonsense-mediated decay, and so can generate truncated proteins.

In humans, most truncating APC mutations occur between the first and third 20-aa repeats [15]. We first sequenced this region from four frogs in our colony to detect any single nucleotide polymorphisms (SNPs) that might interfere with TALEN binding, but none were found. We then designed a TALEN construct to target a sequence between the first and the second 20-aa repeats. An apc TALEN pair was assembled using Golden Gate cloning [16]. Each TALEN arm was fused to either ELD or KKR mutant Fok1, which is active as an obligate heterodimer, hence increasing specificity [17]. No off-target sites were predicted by the TALEN-targeter software [18].

Synthetic RNAs generated from the apc TALEN pair were micro-injected into two-cell stage embryos, which were then grown until stage 46. Individual embryos were lysed and genomic DNA was extracted. The targeted region was amplified and subcloned into pTOPO plasmids. Sequencing of individual plasmid clones revealed discrete insertion and deletion mutations (INDELs) in 59% (n= 17) of the clones (Fig. 1B). This demonstrates that the apc TALEN strategy is very efficient in X. tropicalis allowing introduction of frame-shifting INDELs in the apc MCR region. These mutations are predicted to result in expression of truncated proteins, which mimic the human disease-prone situation.

Formation of tumors with bi-allelic apc mutation

High doses (300 pg) of apc TALEN were largely detrimental to embryonic development, most likely because they disrupt several early developmental processes that are under control of Wnt/β-catenin signaling. However, a large portion of embryos injected with lower doses (40 pg) progressed into the tadpole stage. When the tadpoles developed their hind limbs, several external neoplastic lesions developed. Most striking were the many cyst-like tumors in the epidermis, several subcutaneous tumors, and large, fast-growing tumors in the region of the extending limbs.

APC-driven intestinal tumor formation in humans is associated with bi-allelic mutations or loss of the wild type copy evidenced by loss of heterozygosity [19]. So we analyzed whether the tumors appearing in the tadpoles injected as an embryo with apc TALENS had two mutant apc alleles. Indeed, in each of the five subcutaneous and hind limb tumors that we analyzed, at least two different INDEL mutations in the apc MCR were apparent (Fig. 1C). All INDELs observed induced frame-shifts (e.g. +1, Δ4, Δ14). This is in line with the expectation that a subpopulation of the embryonic cells will develop truncating bi-allelic mutations that enable them to hyper-proliferate and form tumors.

Intestinal and extra-intestinal hyperplasia and malformations in mosaic apc mutant tadpoles and froglets

The mosaic apc mutant tadpoles and froglets rapidly developed externally visible neoplastic lesions. Most recurrent were subcutaneous desmoid tumors (55%, n=26), epidermoid cysts, fast growing tumors in the limb region (32%) and visible abnormalities in the brain (68%) and the eyes. The animals were euthanized when they showed clear signs of discomfort. This was especially the case for animals with the limb tumors, which grew fast to a very large size. This prevented the tadpoles form reaching metamorphosis. Hence, to increase tadpole survival, we performed targeted injections of the apc TALEN RNAs in unique individual blastomeres at the 8-cell stage. Xenopus embryos have well characterized fate maps, which allows to enrich the injected substances, such as the TALEN RNAs, in specific tissues and organs [20]. Embryos were injected in a single dorsal-animal, ventral-animal, dorsal-vegetal or a ventral-vegetal blastomere and the resulting tadpoles were observed for over 18 weeks. Interestingly, different tumor types were clearly linked to specific injection sites (Table 1). Epidermoid cysts were especially observed in embryos targeted in a ventral-animal or a dorsal-animal blastomere, which contribute primarily to ectodermal derived tissues such as the epidermis. In contrast, desmoid tumors were only observed upon injection of a dorsal-vegetal or ventral-vegetal blastomere, which contribute to the endodermal and mesodermal derived tissues and organs. The fast growing limb tumors were restricted to embryos injected in a ventral-vegetal blastomere, which contributes to the lateral plate mesoderm, from which the limb buds originate. Therefore, subsequent exclusion of injections in the ventral-vegetal region can prevent the fast growing limb tumors and hence increase the number of animals that reach metamorphosis.

Intestinal neoplasms

Intestinal organs were examined after opening of the peritoneal cavity. The liver was often enlarged and yellowish, but there was no evidence of tumor nodules (data not shown). The pancreas, kidneys and spleen did not show obvious macroscopic abnormalities. Although the small and large intestines in tadpoles did not show external signs of tumors, histological examination revealed abnormal organization of the intestine in tadpole stages (in two out of three intestines analyzed – data not shown). In adult frogs dissected at 10 months of age we observed local expansion of the intestine, especially in the duodenum (5 out of 15 intestines analyzed). This was especially apparent when the intestine was cut along the longitudinal axis and turned inside-out. The post-metamorphic intestinal cell layers are organized in longitudinal folds, and the trough-crest axis resembles the crypt−villus organization of mammalian small intestine. Lgr5-positive stem cells are present at the bottom of the troughs, again resembling the situation in mammals [21]. In contrast to wild-type frogs, the folds in the duodenum of animals injected with apc TALENs were massively expanded, irregularly structured and more undulated with local protuberances (Fig. 2A,B).

Histological examination of the intestine of apc TALEN injected post-metamorphic frogs revealed several abnormalities. Cross-sections of the normal intestine showed a thick muscularis externa lined by a mucosa evaginating into the lumen and forming multiple folds (Fig. 3A). These folds were tall and regular, with alternating long and shorter projections. The folds were lined by a monolayer of tall columnar cells overlying a lamina propria, which was in direct contact with the muscularis externa. The epithelial cells at the base and between the folds had a larger, darker stained elongated nucleus in a basal location. Towards the tip of the folds the nuclei were smaller and mucus-secreting goblet cells were present between the enterocytes.

Transversal sections of the intestine from the mutated animals showed expanded crypts and folds that were very irregular and of various length (Fig. 3B). Several folds showed ectopic crypts perpendicular to their longitudinal axis. The epithelial cells lining the cavity were small, but tall columnar cells with an elongated basal nucleus were present from the top to bottom of the folds and the number of cells lining the folds was increased relative to the normal samples. Features of inflammation were not observed in either normal or mutated samples.

Limb associated tumors

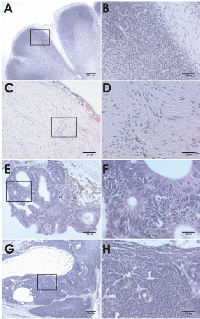

Rapidly growing tumors with external lobular morphology appeared in the hind limb region of 30% of tadpoles injected at the 2-cell stage, often displacing the developing limb (Fig. 2C). A higher incidence (> 70%) of limb tumors (including tumors in the front limb region) was observed upon targeted injection of a ventral-vegetal blastomere (Table 1). These tumors were sometimes very large, with the inward growing part displacing the organs in the abdomen. Histological examination showed tumors with a solid and relatively circumscribed growth arrangement composed of patternless sheets of densely packed, monotonously small, round, cells with scant cytoplasm (SRBCT or small round blue cell tumors) (Fig. 4A,B). The most cell-dense areas were at the periphery. The central regions were more scarcely populated and contacted the forming limb structures. There was no discontinuity between the limb tissue and the neoplasm. This indicates that the tumor might have been derived from the limb mesenchyme.

Desmoid tumors

A tumor type observed frequently in more than 30% of tadpoles injected at the 2-cell stage with apc TALENs was externally visible as subcutaneous light-colored masses (Fig. 2D). Tumor frequency surpassed 70% when the TALENs were injected at the 8-cell stage in a vegetal blastomere (Table 1). These tumors were relatively slow growing and became detectable in premetamorphic tadpoles (Fig. 2D). They were mostly attached to skin and/or muscles. Histology revealed a spindle-cell mesenchymal tumor composed of sweeping fascicles of uniform, spindle shaped or stellate, fibroblastic cells interspersed with collagen deposits and with a prominent vasculature (Fig. 4C,D). These features are characteristic of desmoid fibromatosis, a major extra-colonic tumor prevalent in FAP patients [22].

Epidermoid cysts

The first tumors that were apparent in developing tadpoles were epidermal neoplasms, mostly detectable from two weeks of age on (Fig. 2E). The highest frequency (47%) was observed when targeting the TALENs to an animal-ventral blastomere, which contributes to the epidermis (Table 1). Histological examination revealed a cystic organization, also suggesting an epidermal origin (Fig. 4E). Although epidermoid cysts have been observed in FAP patients [22], their histological architecture is very different from the frog tumors. This may be due to differences in the organization of the skin, which in Xenopus tadpoles is not stratified. The cystic outgrowths contained neuroblastic elements with formation of rosettes, morphologically reminiscent of a malignant, poorly differentiated, primitive, embryonal neuroepithelial/neuroectodermal tumor (PNET). Areas of neuroepithelial differentiation were seen, with formation of primitive glandular structures resembling the neural tube and composed of pseudostratified, columnar-cuboidal epithelium (medulloepithelioma) (Fig. 4F).

Medulloblastomas

Some tadpoles injected with apc TALENs showed abnormal swimming behavior, including defects in balance. Abnormalities in the brain were apparent externally (Fig. 2F) or upon dissection. Histological examination of these tadpoles showed neoplasms that closely resemble medulloblastoma (Fig. 4G,H), which is another tumor type observed in a subset of FAP patients [22].

Retinal hyperproliferation

A fraction of tadpoles injected with the apc TALENs showed enlargement of the eyes. Histology showed abnormal organization of the retinal cell layers and the lens. The localized expansion of the cells of the neural retina adopted rosette-like structures and ectopically localized retinal pigment epithelium (Fig. 3C,D). These retinal malformations may be linked to Congenital Hypertrophy of the Retinal Pigment Epithelium (CHRPE), which is frequently observed in FAP patients [22].

Wnt/β-catenin signaling is active in apc mutant tumors

To investigate whether the mosaic mutations in the MCR of apc resemble also functionally the situation in mammals and induce neoplasia with a hyperactive Wnt/β-catenin signaling pathway, we injected the apc TALENs in embryos obtained from a transgenic X. tropicalis Wnt reporter line that we previously generated and characterized [23, 24]. GFP signals were analyzed in living tadpoles and in freshly dissected desmoid tumors. The most striking increase in GFP signal was observed in the fast-growing hind limb tumors (Fig. 5A-C) and in the epidermoid cysts (Fig. 5D,E). Remarkably, in the limb tumors the signal was especially strong in the peripheral region and was organized in undulated continuous strands (Fig. 5C). Histological examination and staining for phosphorylated histone 3 showed that the areas of highest GFP signal also had the highest cell density. It is unclear whether the intense GFP signal was due to a stronger Wnt response or primarily reflected the density of the cells in the tumor. Also the desmoid tumors showed increased GFP signals, primarily visible when the skin, which shows autofluorescence, was removed and the tumor was exposed (Fig. 5F,G). The fluorescent signal was weaker compared to the epidermoid cysts and the limb tumors but this is probably due to the fact that the fibromatous desmoid tumors are very rich in extracellular matrix but particularly low in cell density. Together, these data show that Wnt/β-catenin signaling is increased, at least in the three types of tumors that were analyzed.

apc mutant tumors show abnormal proliferation profiles

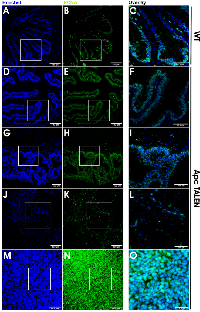

To further examine whether TALEN-driven apc mutation affects cell proliferation, we performed proliferating cell nuclear antigen (PCNA) analysis on sections from intestines, epidermoid cysts, and the desmoid and hind limb tumors. As described previously [25], cell proliferation in the froglet intestine is restricted to the lower third of the trough-crest axis, which resembles the crypt-villus organization in mammals (Fig. 6A-C). In the intestines of frogs injected with apc TALEN, PCNA staining was uniform both in troughs and in crests of the longitudinal folds (Fig. 6D-F). This is reminiscent of the situation in mice after loss of Apc and in humans carrying familial APC mutations [26-28].

Increased PCNA staining was also apparent in other tumor types that we analyzed by immunostaining, namely the epidermoid cysts (Fig. 6G-I) and desmoid tumors (Fig. 6J-L). The limb tumor in particular showed rapid cell proliferation, with > 90% of the cells showing increased PCNA staining (Fig. 6M-O).

Multiplexed gene disruption in Xenopus tumors

A major asset of our model is the possible identification and characterization of genes that cooperate with APC-driven tumor formation or progression. To investigate whether we can obtain double bi-allelic gene disruptions in the tumors, the TALEN pair targeting the apc MCR was co-injected in two-cell stage embryos with a TALEN pair targeting the non-selective Tyrosinase (tyr) gene [29]. Tadpoles were grown until they developed limb and desmoid tumors. Tumor samples were obtained and DNA was extracted. The targeted region of the tyr gene was amplified by PCR and subcloned into pTOPO plasmids. All tumor samples contained only tyr alleles with INDEL mutations (Fig. 7), in addition to the obligate mutant apc alleles (data not shown). These results show that multiplexed bi-allelic gene targeting is straightforward in the developing Xenopus tumors.

DISCUSSION

We describe here a new and representative model for both familial and sporadic cancers associated with mutations in the APC tumor suppressor gene. Our Xenopus model develops at least three tumor types that are also found in human FAP patients: intestinal neoplasias, desmoid tumors, and medulloblastomas. Moreover, histological distortions in the Xenopus retina bear a resemblance to FAP-associated CHRPE. Two additional tumor types could not be linked to FAP, i.e. the limb tumors and the PNET-like outgrowths in the epidermis. These tumors might be development-related neoplasia, which are due to the early bi-allelic apc mutations that are inherent to the TALEN approach, and which do not occur in human FAP patients.

The vast majority of the Xenopus tumors contained only mutant apc alleles. For the epidermoid cysts, the desmoid tumors and the hind limb tumors we demonstrated increased activation of the Wnt/β-catenin signaling pathway. Increased cell proliferation, as revealed by PCNA staining, was evident in all the tumor types. Interestingly, while the intestine was neoplastic, with proliferation extending throughout the crypt−villus axis, we did not observe genuine adenomas. We believe that this was due to the distinct histological organization of the post-metamorphic intestine of Xenopus, where cells are organized in continuous extended folds. This means that a clone of hyperproliferating cells would not be trapped locally, as would be the case in mammalian crypts. Instead, they can move sideways and cause expansion of the folds. This also explains the abnormal curly appearance of these folds (see Fig. 2B).

Cancer associated with APC mutations has already been extensively modeled in mice, both in spontaneous models such as the Apc^Min mouse and in models using inducible tissue-specific Apc truncations [3]. A zebrafish model using ENU-induced mutation of the Apc MCR region was also described [30]. Heterozygous mutant fish effectively developed adenomas associated with increased Wnt/β-catenin signaling [4]. However, this only happened after 15 months in only a few of the adult animals [4]. Therefore, a faster aquatic model for APC-associated cancer with a higher penetrance, such as the Xenopus model described here, will be a major asset to the field.

Indeed, a major benefit of our model is the high penetrance and reproducibility of tumor formation and the rapid induction of the neoplasms, with the first desmoid tumors visible in six weeks. This opens the door for a myriad of applications including genotype-phenotype analysis by designing TALENs to different regions of the apc gene [31-33]. In addition, the rapid induction and reproducibility of tumor formation, combined with the aquatic habitat of the tadpoles and froglets, might permit fast and efficient pre-clinical screening of candidate compounds. It will be interesting to validate our model with experimental compounds or existing, clinically approved drugs, that were recently shown to interfere with APC associated intestinal or desmoid tumor formation [34-36].

In addition, we believe that our new Xenopus tumor model may be especially useful for identifying or characterizing possible effectors or modifiers of APC mediated tumor formation [37-39]. Also, analysis of tumor suppressors that cooperate with APC, or genes involved in tumor progression, would be a valuable extension of our model. The possibility of generating tumors with bi-allelic mutations of two independent genes –as shown here for the apc and the tyr genes– is an important benefit of our model. This approach is especially interesting for X. tropicalis, which is a tetrapod and a true diploid. In comparison, such approach would be less feasible in zebrafish, where about 30% of the genes are duplicated due to a genome duplication event that occurred during the phylogenetic development of the ray-finned fishes [40]. In addition, the very high synteny between the human and the X. tropicalis genomes facilitates the identification of the frog orthologs for most human genes of interest [14]. Evidently, Xenopus does not have the benefit of numerous existing mutant lines generated in zebrafish by the TILLING project and the Zebrafish Mutation project [10, 11]. However, considering current methods for efficient and cheap genome editing by using TALENs and CRISPR/Cas9, this shortcoming is expected to be easily overcome.

In summary, we generated the first genuine genetic tumor model in X. tropicalis using TALEN-mediated targeting of the tumor suppressor gene apc. Our approach would probably be feasible for other cancer-related genes, especially tumor suppressors. This should be an incentive for further use of this tetrapod organism for modeling human genetic diseases and cancer and as a model for pre-clinical drug screening. Xenopus models can become a powerful supplement to the currently frequently used murine and zebrafish models.

MATERIALS AND METHODS

TALEN design, cloning and mRNA transcription

A TALEN pair targeting the MCR of Xenopus tropicalis apc was designed using the TAL Effector Nucleotide Targeter 2.0 software [18], with spacer length and repeat array lengths all at 16 bp. The selected TALEN pair (Fig 1A) was cloned using the Golden Gate Cloning protocol [16], but using the pCS2-Flag-TALEN-ELD/KKR vectors as the final backbones for the TALEN pair [41]. The TALEN pair targeting the tyr gene in X. tropicalis was a kind gift from Dr. Enrique Amaya [29]. These vectors were linearized using NotI, and mRNA was transcribed using the mMessage machine sp6 kit (Ambion). Finally, capped mRNA was extracted with phenol/chloroform, precipitated with isopropanol, and dissolved in nuclease-free water.

Xenopus tropicalis microinjection

Wild type and Wnt-reporter transgenic male and female X. tropicalis were primed 2 days before injection with 10 and 20 IU of human chorionic gonadotropin (hCG), respectively. Natural matings were set up in the morning, after boosting males and females with 100 and 150 IU of hCG, respectively. Embryos were collected and the jelly coat was removed using a 2% cysteine solution in 0.1X MMR (Marc’s Modified Ringers solution). Embryos were injected unilaterally at the 2-cell stage with 40 or 300 pg/embryo of apc TALEN mRNA. At the 8-cell stage, single blastomeres (animal-ventral, animal-dorsal, vegetal-ventral or vegetal-dorsal) were injected with 20 pg of apc TALEN mRNA. For the multiplexing experiment, tyr TALEN RNA and apc TALEN RNA were coinjected at a concentration of 300 and 40 pg/embryo, respectively.

All experiments were performed in accordance with relevant guidelines and regulations of Ghent University, Faculty of Sciences.

DNA extraction and sequencing

Tadpoles and dissected tumors were incubated overnight at 55°C in lysis buffer (50 mM Tris pH 8.8, 1 mM EDTA, 0.5% Tween-20, 200 µg/ml proteinase K). Genomic regions encompassing the apc and tyr TALEN cut sites were PCR amplified using specific primer pairs (apc: 5’-CATCCTAACTCTGCCCAA-3’, 5’-ATAATGTTCTGGTGGGCT-3’; tyr: 5’-ACATATCAATCACCCCAACTC-3’, 5’-TCTATCGTCAACCCCAGTG-3’) and cloned using the pTOPO Zero Blunt® kit (Invitrogen). After transformation, plasmids were extracted from individual bacterial colonies and sequenced by the Sanger method.

Imaging, histology and immunohistochemistry

Living and dissected tadpoles and froglets were imaged on a Carl Zeiss StereoLUMAR.V12 stereomicroscope. Tissues and tumors were fixed in 4% PFA (paraformaldehyde), dehydrated, and embedded in paraffin. Sections of 5 µm were rehydrated and stained with hematoxylin and eosin for histological examination. For PCNA immunohistochemistry, 5-µm sections were pressure cooked in citrate buffer (10 mM citric acid, 0.05% tween-20, pH 6) for antigen retrieval and blocked in 3% goat serum, 1% BSA, 0.1% tween-20 in PBS. Slides were incubated overnight with PCNA antibody (Clone PC10-Dako) at 4°C. Secondary goat anti-mouse dylight-488 conjugated antibody was used for detection. Fluorescent tumor sections were imaged on a Leica TCS LSI zoom confocal microscope.

ACKNOWLEDGEMENTS

We would like to thank Prof. Dr. Em. Karel Geboes, consultant at the Department of Pathology at Ghent University Hospital for analyzing the histological intestinal sections. We are indebted to Sylviane Dewaele for technical assistance and Tim Deceuninck for animal care. The authors would like to thank Amin Bredan for critical reading and editing of the manuscript, and their colleagues for helpful discussions. The plasmids used in this study were obtained from Professor Christopher H.K. Cheng of School of Biomedical Sciences at the Chinese University of Hong Kong. Research in the authors’ laboratory is supported by the Research Foundation – Flanders (FWO-Vlaanderen), and by the Belgian Science Policy (Interuniversity Attraction Poles - IAP7/07). Further support was obtained by the Hercules Foundation, Flanders (grant AUGE/11/14). T.V.N. and T.N. holds a PhD fellowship with the agency for Innovation by Science and Technology (IWT).

Author contribution

K.V. and T.V.N. designed the study and wrote the manuscript, T.N., S.G., H.T.T. and G.V.I. were involved in TALEN design, embryo injections and immunostaining. E.S. and F.V.R. assisted in histological sections and stainings and D.C. performed the pathological analysis of the tissue sections.

CONFLICT OF INTEREST

The authors declare no conflict of interest
