Expression of cancer stem cell biomarkers as a tool for a correct therapeutic approach to hepatocellular carcinoma

This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

ABSTRACT

Liver cancer is the fifth most commonly diagnosed malignancy and the second most frequent cause of cancer death in men worldwide. Amongst liver cancers, hepatocellular carcinoma (HCC) represents the major histological subtype and it is one of the most common malignant human tumors worldwide. Research into the molecular biology of hepatocarcinogenesis has identified several biomarkers, which could provide additional informations in order to better understand the biology of HCC. A large number of biomarkers have been shown to have potential predictive significance and a wide variety of molecular markers have been proven to be excellent diagnostic tools for HCC but it is difficult to characterize HCC with a single biomarker. Thus, signatures of a combination of biomarkers may be more valuable for the diagnosis, staging and prognosis of HCC. Specifically, a correlation of HCC-CSCs phenotype to specific hepatic cancer subtypes and to specific clinical and pathological features has not yet been reported in human liver tumors. In this view we will first discuss the possible sources of liver stem cells and their relation with liver cancer development and we will secondly focus on the prognostic significance of clinical and pathological features of HCC.

INTRODUCTION

Liver cancer is the fifth most commonly diagnosed tumor and the second most frequent cause of cancer death in men worldwide. Amongst liver cancers, hepatocellular carcinoma (HCC) represents the major histological subtype and it is one of the most common malignant human tumors [1]. Intrahepatic cholangiocarcinoma (ICC) is the second most frequent type of liver cancer. Although considerable efforts that have been made in the treatment of HCC such as surgical resection, liver transplantation or and chemotherapy, the mortality rate remains high, and it is largely due to relapse after surgery or formation of intra-hepatic metastases [2]. Combined HCC-cholangiocellular carcinoma (HCC-CCA), a histologycal subtype showing both hepatocellular and biliary epithelial differentiation, has been reported [3]. Indeed, recent immunohistochemical studies of stem cell markers suggest that HCC, and HCC-CCA are histologically heterogeneous and contain a subset of cells expressing a variety of stem cell markers [4].Cancer stem cells (CSCs) have been defined as “a cell within a tumor that possesses the capacity toself-renew and to cause the heterogeneous lineages of cancer cells that comprise the tumor” [5].The CSCs hypothesis postulates that a small subpopulation of cancer cells drives tumor origin, growth and metastasis. According to this hypothesis, tumors are organized into a hierarchy of heterogeneous cell populations and only a small subset of cells has the ability to drive and sustaintumor growth [6] (Figure 1). CSCs are endowed with stem cells properties, therefore they are capable of extensive proliferation, self-renewal and ability to differentiate into non tumorigenic cancer cells.CSCs have been first identified and isolated in human acute myeloid leukemia [7] as a subpopulation of cells that expressed the CD34 surface marker, but lacked the CD38 marker. The properties of CSCs in solid tumors remained relatively undefined until 2003, when their existence was first reported in human breast cancer tumors [8]. A series of breast CSCs’ surface markers were characterized and all of them have been tested and verified. For instance, Camerlingo and colleagues [9] showed that the CD44+/CD24-/low phenotype is correlated with the more aggressive clinical and pathological features of the disease. More recently, highly tumorigenic cells with different surface marker phenotypes were identified. For example, CD133 (prominin-1), an apical plasma membrane protein predominantly on embryonic epithelial structures, has been reported to be an important CSC marker in a number of solid malignancies, including brain tumor [10], prostate carcinoma [11], ovarian carcinoma [12], colorectal cancer [13], osteosarcoma [14] and lung cancer [15]. Besides breast cancer, CD44 is also involved in the tumorigenic CSCs of colon cancer, ovarian carcinoma, head and neck squamous cell carcinoma [16] and prostate cancer.In liver cancer, the sickness generally develops in the setting of chronic liver disease, in which continuous inflammation and hepatocyte regeneration occur. These processes, common to other tumor subtypes [17], include also the expansion of stem/progenitor cells, accumulation of genetic and/or epigenetic mutations, and alterations of the microenvironment (Figure 2A, B). Hepatic stem cells are markedly elevated in chronic liver disease [18]. In this context, the hepatocyte’s proliferative capacity is considered virtually infinite. Activation of stromal cells may induce various signaling pathways, including cytokines such as Wnt, FGF, PDGF, VEGF and TGF-beta and promote the development of liver CSCs. Hepatic stem/progenitor cells derive from the canals of Hering (also named “liver stem cell niche”), bile canaliculi lined with hepatocytes and cholangiocytes [19].In HCC, CSCmarkers include epithelial cell adhesion molecule (EpCAM), CD133, CD90, CD44, CD24, CD13and oval cell marker OV6, as well as Hoechst dye efflux or aldehyde dehydrogenase activities,some of which may functionally support CSC phenotypes, including highly invasive features andchemoresistance [20]. CD133, a hematopoietic stem cell marker, was used to isolate stem-like cells from HCC cell lines [21]. CD133+ cells possessed some stem cell properties, including higher proliferative potential, greater colony-forming efficiency, self-renewal and differentiating capacity and, additionally, they could initiate tumor growth in vivo. Furthermore, in another study, Zhu et al [22] demonstrated that cancer stem cells in HCC are characterized by the co-expression of CD133 and CD44; these cells also showed preferential expression of some stem cell-associated genes and were more resistant to chemotherapeutic agents due to the up-regulation of several ABC transporters.Conversely, ICC is one of the most difficult intra-abdominal malignancies. Several reports have shown the existence of cholangiocarcinoma stem cells. Markers, such as CD133, CD24, EpCAM and CD44 have been used to isolate cholangiocarcinoma stem cells. Overall, an enhanced expression of these markers in resected specimens of cholangiocarcinoma was associated with malignant potential [23, 24].Lastly, combined hepatocellular-cholangiocarcinoma (HCC-CCA) is <1% of all liver carcinomas.The quintessential type of HCC-CCA usually have high expression of biliary markers (CK7, CK19, and EMA); CD56, c-kit and EpCAM were expressed in varying extents in all HCC-CCA.CD133, EpCAM and vimentin’s expression was significantly high in subtypes with HCC-CCA’s stem cell features Regarding the clinical outcome, no significant difference has been reported amongeach subtype. The presence of hepatic stem cell markers (CD56, c-kit, CD133, and EpCAM) in varying extents suggests that the histogenesis of combined HCC-CCA could be strongly associated with hepatic stem cells [25].Many factors such as the patient’s general conditions, macroscopic tumor morphology and its histopathologycal features, as well as effective treatment and adjuvant therapies, have been proven to be of prognostic significance. In recent years, along with the understanding of tumor biology and the development of biology techniques, many molecular factors (biomarkers) have been correlated to prognosis. In this review, we will first discuss the possible sources of liver stemcells and their relation with liver cancer development and we will secondly focus on the prognostic significance of clinical and pathological features of HCC.

HEPATIC PROGENITOR STEM CELLS

Hepatic progenitor stem cells (HPCs) are multipotent stem cells located within the liver’s stem cellcompartment, the ductal plates of fetal and neonatal livers and canals of Hering in pediatric andadult livers. The compartment represents the anatomic and physiological link between theintralobular canalicular system of hepatocytes and the biliary tree and resides along sites thatproject starlike from the portal tracts. The phenotypic profile includes epithelial cell adhesionmolecule (EpCAM), neural cell adhesion molecule (NCAM), CD133, CXCR4, SOX9, SOX17,FOXA2, cytokeratins (CK) 7/8/18/19, Hedgehog proteins, intranuclear telomerase protein, claudin3, MDR1, weak expression of albumin and MHC antigens. They do not express alpha-fetoprotein(AFP), intercellular adhesion molecule (ICAM-1), markers for hemopoietic (CD34, CD38, CD45,CD90), endothelial (VEGFr, CD31) or mesenchymal cells (CD146, desmin, CD105) [26].Conversely, hepatoblasts are diploid bipotent cells from which hepatocytic and cholangiocytic lineages arise. They reside throughout the parenchyma of fetal and neonatal livers or as single cells and small cell aggregates tethered to the ends of the canals of Hering in adult livers [27]. They expand during regenerative processes and have an antigenic profile that overlaps with hepatic stem cells.Protein expression changes include reduction in EpCAM levels, elevated albumin levels switchfrom NCAM to ICAM-1, expression of CK14 and CK19 and strong positive expression of hepatic specific AFP [28].At last, in the liver there are “committed precursors” that are unipotent, immature cells. They losemost stem cell gene expression and express either hepatocytic or biliary markers and abound in fetaland neonatal tissues or chronic liver disease [29].

LIVER CANCER STEM CELLS AND HEPATOCELLULAR CARCINOMA

Liver cancer is an aggressive disease with a poor outcome. The prevalence of HCC differs greatlyby geographical locations. Eastern countries and sub-Saharan African regions have a significantlyhigher incidence rate than Western countries. Liver cirrhosis caused by viral hepatitis, excessivealcohol consumption and other causes such as Wilson’s disease are the major risk factors for HCC development [30]. Despite some improvements in cancer treatment have been made, existing therapies are limited in their ability to cure malignancies and to prevent metastases and relapses. Surgery, radiofrequency, ablation therapy and chemotherapy are all directed at reducing the tumor bulk. In fact, the emergence of CSC theory lends insight into the explanation of why treatment often may be seen initially successful, but eventually results in failure to eradicate the tumor and possibly also in tumor relapse. Similarly with other solid tumors, hepatic CSCs exist and contribute to the development of HCC. Several different markers can be identified such as CD133, CD90, CD44, CD326 (EpCAM) or by selecting the side population (SP) cells by Hoechest dye-staining in order to isolate CSCs from liver cancers.It is important to mention the embryology of the liver to understand the multiple processes ofhepatocarcinogenesis. In mammals, the liver bud gives rise to cells destined to become bipotentialliver progenitor cells (LPCs) [31]. LPCs initially express alpha fetoprotein and albumin and, later,cytokeratins (CKs)-7 and -19. At this time, cells, called hepatoblasts, positive for CK16 andHepPar1, proliferate, delaminate and invade the septum trasversum mesenchyme (STM) undergoing cellular proliferation and differentiation [32]. Subsequently, LPCs diverge along two cell lineages: hepatocytes (alpha fetoprotein and album positive) and cholangiocytes (CK19 positive).Modulation of biliary and hepatocyte morphogenesis during development is also prominentlycontrolled by TGF-beta signaling via Smad proteins. In adult human tissues, immature epithelialcells have been found residing in the smallest terminal branches of the biliary tree known as theCanals of Hering [33]. These cells have been described as hepatic progenitor cells. Within the niche(Canals of Hering), hepatic progenitor cells are in direct physical continuity with hepatocytes at onemembrane boundary and bile duct at another boundary and are considered to represent hepatic stemcells [34].When the mature epithelial cell compartments of the liver (hepatocytes and/or cholangiocytes) aredamaged, a reserve cell compartment is activated [35] (Figure 3). As progenitor cells are activated in most chronicliver diseases that are known risk factors for the development of HCC as well as ICC, progenitorcells are potential target cells for carcinogenesis. The hypothesis that HCC arises from HPCs issupported by the finding that many tumors contain a mixture of mature cells and cellsphenotypically similar to HPCs. Most tumors still show phenotypical features of their cell of origin and the histopathological classification is largely based on this. Furthermore, HCCs’ immunophenotype revealed the expression of progenitor cell markers such as CK7, CK19, OV6. These tumors, morphologically speaking, consist of cells with a phenotype which is intermediate between progenitors and mature hepatocytes. Especially, CK19 expression in HCC has been associated with a worse prognosis and the expression of CK19 and CK7 in HCC has been associated with a lower tumor free survival rate [36].

HEPATOCELLULAR CARCINOMA STEM CELL MARKERS

HCC expressing stemness-related markers is a recently suggested subtype of HCC in which a fraction of tumor cells (>5%) expresses stem/progenitor cell markers, not otherwise recognizable by routine analyses stain. This subpopulation of HCCs has been reported to show a more aggressive behavior, compared with conventional HCCs without stemness-related marker expression; therefore, it is important to develop a suitable marker in order to facilitate its diagnosis [37]. Hence, CSCs markers can be considered as useful biomarkers for the HCC’s prognostic estimation and eventually for specific targeted therapy. To date, it has been demonstrated that CSCs in HCC can be identified through several cell surface antigens such as CD133, CD90, CD44, OV6 and the epithelial cell adhesion molecule (EpCAM), or by selecting for the side population (SP) cells.In this context, CD133 has been related to a worse prognosis and metastasis in HCC patients. CD133, a transmembrane domain glycoprotein, is an important cell surface marker for both normal stem cells and CSCs in various tissues, including liver. Ma et al [38] proved that CD133 was upregulated in association with the liver regeneration process. Conversely, isolated CD133+ HCC cells were shown to have higher proliferative and tumorigenic potential and to express lower levels of mature hepatocyte markers. Moreover, the expression of CD133+ cells gives to the HCC resistance to conventional chemiotherapy. However, CD133 was found to be expressed in only a minimal proportion of HCC cells, and not expressed at all in normal hepatocytes. This result suggests that the CD133+ cells are responsible of the origin of liver cancer. CD133+ liver CSCs showed activation of the Akt pathway and chemoresistance to doxorubicin or 5-FU.Regarding CD90, its expression on progenitor cells is related to tumor development/progression. This glycosylphosphatidylinositol-anchored conserved surface protein, has emerged as another putative marker for liver CSCs and has been correlated by Yang and colleagues, with tumorigenicity and metastatic potentials in the panel of HCC cell lines that have been tested [39]. In order to exclude lymphocytes, they combined its use with CD45 to isolate non-lymphoid CD90+ cells. They then found these CD90+/CD45- cells to be present in all the HCC cell lines. Furthermore, the CD90+/CD45- cells were present also in blood samples collected from the same HCC patients [40], indicating the presence of putative circulating CSCs. Yang and colleagues performed also multiparametric analyses of CD90+ cells and found that most of them were positive for CD44. This result suggests that the CD90+, CD44+ and CD45- cells are responsible of tumor metastasis.CD44 is a receptor of hyaluronate involved in cell-cell adhesion and migration and it has been associated with tumor cell invasion and migration in liver cancer. In HCC, CD44 isalso an important marker used in combination with other CSC markers in order to better define the surface phenotype of liver CSCs. Cells co-expressing CD133 and CD44, or CD90 and CD44 show a more aggressive phenotype. CD133+/CD44+ cells exhibit a more tumorigenic andchemoresistant profile compared to the negative counterpart. Zhu et al [22] showed that CD133+/CD44+ cells possess greater survival when exposed to cytotoxic drugs such as doxorubicin and vincristine.The overexpression of ABC transporters underlies the mechanism, which is responsible of drug resistance.EpCAM (CD326) is a cell surface molecule expressed in almost all the epithelial tumors; it has been identified as a potential early biomarker for HCC [41]. EpCAM is present in the embryonic liver, bile duct epithelium and proliferating bile ductules in the cirrhotic liver, but it is absent in normal adult hepatocytes [42]. Furthermore, EpCAM has been shown to be a direct transcriptional target in the Wnt/β-catenin signaling pathway [43]. This pathway plays an important role in managing the cancer cells’ self-renewal. EpCAM has been firstly identified in premalignant hepatic tissue, hence it was suggested to be an early biomarker for HCC. Particularly, the double positivity of EpCAM and AFP in HCC has the worst prognosis [44]. EpCAM+HCCs are responsible of early relapse after radical resection due to microdissemination in the residual liver because of the high frequency of portal vein invasion [45]. In addition to EpCAM+, CSCs showed chemoresistance against the genotoxic reagent 5-fluorouracil (5-FU).Oval cells (OV6) are one of the most important sources of liver stem cells. These are small cells with a characteristic ovoid nucleus and a underrepresented cytoplasm. They are located in the periportal region and then infiltrate along the bile canaliculi. Oval cells are bipotential and are capable of differentiating into hepatocytes or cholangiocytes [46]. In severe hepatocellular necrosis, chronic viral hepatitis, alcoholic and non alcoholic liver disease, where mature liver cells are unable to regenerate, activation of the potential stem cell compartment leads to formation of reactive ductules with a high expression of oval cell markers. It was demonstrated that OV6+ HCC cells are endowed with a greater tumorigenic ability and chemoresistance to standard chemotherapy.Side population (SP) profile is another method used to identify hepatic CSCs [47]. Stem cells expressing high levels of ATP-binding cassette (ABC) transporters possess the ability to efflux xenobiotic substances. In HCC, these populations are characterized by a higher proliferative potential, antiapoptotic property and higher tumorigenic potential. The use of this method to define liver CSCs has, however, been challenged by some authors disapproving it as the dye used is highly cytotoxic.CD13 (Aminopeptidase N) is a membranous glycoprotein playing an important role in cancerprogression. Most recently, CD13 positive cells could be found in the peripheral areas of HCC [48],and this is considered to be related to tumor relapse. Researchers also assessed the tumorigenic potential of CD13+ cells co-expressing CD13 and CD133 or CD90. In fact, CD13 is a marker of tumor-initiating and potentially dormant HCC cells. Studies on CD13 expression and their relationship with the cell-cycle phase indicated that most of the CD13+ fraction exists in the G1/G0 phase. Subsequently, dormant CD13+ cells produce proliferating CD90+ cells that are responsible of metastasis. Immunohistochemical findings also support the view that CD13+ cells play a role in the liver cancer relapse. The apparent increase in the number of CD13+ cells near the fibrous capsule after TACE (transcatheter arterial chemoembolization) is consistent with the fact that clinical HCC relapse after TACE is frequent at the capsule site, due to amplification of CD13+ cells after 5-FU treatment. This suggests that the cellular components of capsule play a role as a protective niche.Cytokeratins are typical epithelial cell markers that are present in many malignant epithelial cells with increases metastatic ability and malignancy [49, 50]. It has been reported that several cytokeratin subtypes are also expressed in HCC [51] such as CK19 and CK7. CK19 is a low molecular weight cytokeratin and its correlation with HCC metastasis has been reported [52]. CK19 positive HCCs more frequently showed major vessel invasion and increased tumor size. CK19 expression is therefore considered a significant independent predictive factor of poor disease-free survival [52].

DIAGNOSTIC AND PROGNOSTIC MARKERS

Hepatocellular carcinoma is one such cancer that can benefit from tumor biomarkers’ diagnostic,therapeutic, and prognostic capabilities. The prognosis of patients with HCC still remains dark. Thelife expectancy of HCC patients is hard to predict. The high rate of intrahepatic and/or extrahepatic post-operative relapse remains one major obstacle to further improving the survival rate and prognosis of HCC patients.Molecular markers used for HCC diagnosis can be classified into three major categories: 1. Traditional serological markers; 2. Cancer stem cell markers; and 3. Tumor tissue markers. Serological markers are most commonly used clinically, whereas among the conventional tumor markers, serum alpha-fetoprotein (AFP) is not only used for diagnosis, but also as a prognostic indicator for HCC patients. AFP is indeed abundantly expressed in fetal liver cells, but not in normal adult liver cells.Patients with high AFP levels at the time of diagnosis tended to have greater tumor size, bilobar involvement, massive or diffuse types and portal vein thrombosis [53]. In order to increase the specificity of the test, some alternative forms of the protein were studied (AFP-L1, AFP-L2 and AFP-L3). The AFP-L3 is the most commonly evaluated isoform in patients with HCC, while AFP-L1 prevails in patients with non-neoplastic disease [54]. Unfortunately, AFP serum concentrations do not correlate well withthe prognostic values of HCC such as tumor size, stage, or disease progression.Other serological markers of HCC include Glypican-3 (GP3) that is a member of the heat-shock protein family and plays role in cell growth, differentiation and migration. GP3 promotes thegrowth of HCC by regulating the signaling activity of several growth factors, including the Wnt/β-catenin pathway, which is crucial for the progression of HCC. In addition, no correlation betweenGP3 expression and tumor stage, size and AFP level has been observed.Other serological markers of hepatocellular carcinoma include gamma-GT (GGT),and alpha-1-fucosidase (AFU) isoenzymes. None of these markers proved to be more convenient in terms of AFP diagnostics’ accuracy. Hepatic Kupffer cells and endothelial cells of the bile duct mainly secrete GGT in healthy adults and its activity increases in HCC tissues. AFU is a lysosomal enzyme found in all mammalian cells. Its activity is found to be increased in the serum of HCC patients. GGT and AFU’s measurement is useful in association with AFP in the early diagnosis of HCC and could serve as a valuable supplementary to AFP.Over the last decade, new technologies (microarray and sequencing) have emerged, leading thesearch for biomarkers into a new era [55]. Using these technologies, it is now easy to examine awhole tumor genome, transcriptome, epigenome and miRNA profile [56]. Currently, numerouscirculating and tissue markers have been identified; however, few biomarkers areacceptable for clinical utility alone for their low predictive accuracy. For the purpose of early diagnosis, HCC can be assessed with serum markers such as AFP level combined with imaging techniques (ultrasonography, magnetic resonance and computer tomography). Tumor tissue-oriented markers are not highly practical because not all tumor tissues can be obtained at an early stage [57], while biomarkers from body fluids such as serum, plasma, urine, and bile are suitable candidates for early diagnosis. This finding led to the conclusion that the serum markers’ panel had considerable clinical value for the early diagnosis of HCC and could help patients with an optimal therapy.Surgical treatment, instead, offers a potentially curative option for HCC patients, but outcomesvaried due to differing tumor characteristics. The prognosis does not simply reflect the size andnumber of the tumors but prognosis is affected by a complex interplay of factors, including tumorbiology, patient condition, sex, age, and clinicopathological characteristics. Circulating biomarkerssuch as serum AFP, VEGF, HGF, and TGF-β are still preferred for prognostic prediction. Circulating tumor cells (CTCs) may reflect tumor aggressiveness and serve as a promisingcandidate for predicting relapse and metastasis [58]. However, their utility is limited by the rarity of CTCs in the peripheral blood even if recent technical findings have made it possible to detect CTCs in multiple tumor types, including breast cancer [59], lung cancer [60] and others [61, 62]. Concerning HCC, studies proved that EpCAM+ CTCs may serve as a prognostic marker after curative resection [63]. Research into tumor tissues can provide direct biological information about the tumors. According to the CSC theory, CSCs could influence patient’s prognosis by promoting metastasis and recurrence. Consistent with this hypothesis, recent findings show that the presence of CSCs (such as CD90, CD133, CD13, CD44, EpCAM and CK19) could be linked with patient’s survival. For instance, the overexpression of CD90 in HCC is associated with poor diagnosis [64]. CD90 is expressed by hepatic stem/progenitor cells during liver development but not in the adult liver. The CD90 positivity has been shown to propagate tumorigenicity. Lu et al [64] performed immunohistochemical studies that confirmed the correlation between CD90 expression and clinical parameters: CD90 was increased in 73% of HCC samples. CD90’s overexpression was correlated with age, hepatitis B virus, infection and histological grade, but was not influenced by chronic alcohol exposure or cirrhosis. Therefore,CD90+/CD44+ cells may also serve as a sensitive and specific marker for early tumor diagnosis in HCC. Furthermore, increased CD133 expression is an independent prognostic factor for survival and tumor relapse in patients with HCC [65]. CD133 is a valuable marker expressed in human HCC, while absent in normal liver cells. Sasaki et al [66] shows that cytoplasmic expression of CD133 in HCC is associated with elevated serum AFP levels, histologically high-grade tumor, and tumor invasion to the major branch of the portal vein. Some studies [67, 68] demonstrated that CD133 expression is associated with clinical and pathological factors, including preoperative serum AFP level and poorly differentiated tumors. Moreover, a significant association was observed between cytoplasmic expression of CD133 and overall survival of patients with HCC, due to multicentric carcinogenicity and hematogenous metastasis to the liver and remote organs. Consequently, positive cytoplasmic expression of CD133 represented the risk of poor prognosis, especially in patients with HCC at an advanced stage. Particularly, Chan et al [67] showed that CD133 is a highly effective prognostic factor for overall survival in patients affected by disease at stage I. The result of this study not only consolidates the prognostic role of CD133 expression in HCC, but also highlights the significance of CD133 in early stage HCC. EpCAM, conversely, has been associated with younger age, poorer histological differentiation, vascular invasion and more advanced TNM stages [68]. Lastly, CK19 positivity in HCC was well correlated with the clinical and pathological features of tumor aggressiveness and poor prognosis. CK19 positivity in HCC was associated with increased expression of epithelial-mesenchymal transition (EMT)-related genes and invasion-related proteins and these results suggest that this HCC subset may acquire more invasive characteristics, compared to other stemness markers.In the end, CD44’s expression in HCC is related to a higher frequency of extra hepatic metastasis and shortened survival rate [69] and CD24’s overexpression in HCC correlates with a more aggressive tumor behavior and poor clinical outcomes [70]. However, the predictive range of a single marker is limited to a very small subpopulation, because of the high extent of HCC heterogeneity. Some independent researchers planned a predictive model using a combination of several hepatic CSC’s markers in association with clinical and pathological characteristics [71]. For instance, Yamashita and colleagues [72] have found that AFP could be used with EpCAM to define cancer cells with stem cells features and demonstrated that EpCAM+ and CD90+ cells resided distinctively; furthermore, gene expression’s analysis of sorted cells suggested that EpCAM+ cells had features typical of epithelial cells, whereas CD90+ cells had those typical of vascular endothelial cells. Clinical and pathological analysis indicated that the presence of EpCAM+ cells was associated with poorly differentiated morphology and high serum alpha-fetoprotein (AFP), whereas the presence of CD90+ cells was associated with a high incidence of distant organ metastasis. This statement in combination with a serum AFP test might potentially be useful in subgrouping HCC patients and predicting their outcomes. More studies focusing on the identification of other hepatic CSCs population in combination with AFP serum test and clinical-pathological features might significantly improve the current early diagnostic methods.

NEW POSSIBLE STRATEGIES

The failure of existing cancer treatments has started the search for new methods that effectively target CSCs. The successful eradication of cancer requires anticancer therapy that affects the differentiated cancer cells and the potential CSC population. CSCs are difficult to treat with conventional methods because of their chemoresistant and radioresistant properties, as well as their ability to stimulate angiogenesis and metastasis. Therapies that exclusively address the pool of differentiated cancer cells but fail to eradicate the CSC compartment might ultimately result in relapse and the proliferation of therapy-resistant and more aggressive tumor cells. An ideal drug would kill differentiated cancer cells and, at the same time, selectively kill CSCs to avoid the toxic side effects for other cell types. Novel therapies may be needed in order to overcome the complex network of signaling pathways, and ultimately inhibit the signaling that controls tumor growth and survival.In some review, authors [73, 74] have discussed the different therapeutic strategies thatcould be used in the treatment of liver cancer. CSCs are protected from conventional therapies by changing their microenvironment and self-protection. Specifically targeting any of these areas may lead to the eradication of HCC CSCs. Targeting key signaling pathways for CSC self renewal such as the Wnt/beta-catenin signaling pathway is indeed one approach to therapy. This system/pathway could be inhibited through the development of molecules that destroy the enzymes necessary for the operation of the cascade Wnt/beta-catenin, or through the development of anti-EpCAM antibodies that interfere on its target genes.Another approach is to induce differentiation of the CSCs and then lose their self-renewal properties. In this case, oncostatin M, an interleukin known to induce differentiation of hepatoblasts into hepatocyte, could be used to effectively induce differentiation and cell division of EpCAM+ liver CSCs and the combination of oncostatin M with conventional chemotherapy (5-fluorouracil) could efficiently eliminate HCC by targeting both CSCs and non-CSCs.The recent findings regarding the identification and characterization of liver CSC markers offer great promise for developing better therapeutic strategies against the disease. For example, CD133 cells possess chemoresistance by activation of the AKT/PKB. A possible strategy is to use an AKT1 inhibitor or, in addition, suppression of CD133 by antibody to human CD133 conjugated to a potent cytotoxix drug. Similarly, it would be useful to develop anti-CD44, anti- EpCAM, anti-CD13 antibodies as novel target therapies.The discovery of liver CSCs has also elucidated the mechanisms underlying treatment failure in liver cancer. At present, conventional anticancer therapies including chemotherapy, radiation and immunotherapy, kill rapidly growing differentiated tumor cells, thus reducing the tumor mass, but potentially leaving behind cancer-initiating cells. In addition, microenvironment surrounding them is important for maintenance, such as angiogenesis, vasculogenesis and hypoxia. Many new therapeutic strategies targeting CSCs have been tried (Table 1) [73, 74].Several studies have reported the crucial role of microRNAs (miRNAs) in tumor cell proliferation, apoptosis, metastasis and drug resistance [75]. MiRNAs, a class of non coding RNAs made of 15-25 nucleotides, have been proposed as novel biomarkers in the diagnosis and prognosis stratification of HCC [76]. The differential expression of miRNAs in HCC cells indicates the potential value of miRNA detection in the prediction of HCC diagnosis and prognosis (Table 2). Downregulation of associated HCC miRNAs was significantly related to poor diagnosis, shorter disease-free survival rates and features of metastatic tumors including venous invasion, microsatellite formation and reduced differentiation but also high levels of other types of associated HCC miRNAs has correlated with risk recurrence and shorter overall survival (Table 2). In addition, miRNAs play a pivotal role in the pathogenesis and progression of the disease through the deregulation of various molecular pathways such as PTEN/Akt, p53, RAS/MAPK, Wnt/beta-catenin and others. Other studies [77, 78] have suggested that strategies based on the modulation of miRNAs activity may provide a novel approach in the treatment of HCC by inhibition, replacement or regulation of HCC chemosensitivityactivities.

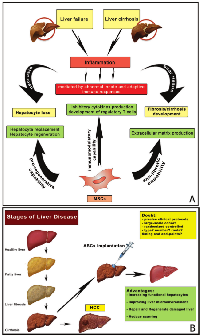

ROLE OF BONE-MARROW STROMAL CELLS OR ADIPOSE STEM CELLS IN LIVER REGENERATION AFTER HEPATIC FAILURE

Liver cirrhosis on the basis of a chronic hepatitis B or C, autoimmune hepatitis, chronic alcoholabuse, primary sclerosis cholangitis and primary biliary cirrhosis are only few of the possible reasons for liver failure. The most common cause of chronic liver disease is chronic liver hepatitis which causes inflammation, necrosis and deposition of collagens at the portal and periportal level,producing damage fibrosis that is the ultimate endpoint. The only effective treatment is orthotopicliver transplantation, accessible only for a limited number of patients, due to lack of donor organsand difficulties with hepatocyte supply. A very encouraging approach lies in regenerative medicine, which holds promise for the development of a cell-based therapy of the liver and may allow the transplantation of hepatocyte-like cells generated from stem cells [79]. Mesenchymal stem cells (MSCs) represent an advantage for allogenic transplantation because they are immunoprivileged with low major histocompatibility complex (MHC) I and no MHC II expression, therefore reducing the risk of rejection and preventing graft-versus-host-disease (GVHD). MSCs can be easily obtained from a the patient’s own tissues, isolated ex vivo, expanded and then transplanted into the patient. The most promising regenerative cells are MSCs found in human bone marrow [80] and adipose tissue [81-83]. These stem cells can differentiate in vitro into multiple types of lineages such as: chondrogenic, osteogenic, adipogenic, myogenic, neurogenic and also into hepatogenic lineage. Hence, human adult MSCs are promising candidates for liver regeneration.Multipotent bone-marrow stromal cells (BMSCs) are a group of cells that are found in adult bone marrow. Numerous researchers have focused on the role of BMSCs in the liver regeneration. It iswidely accepted that BMSCs differentiate into hepatocytes or hepatic-like cells. In the process ofchronic liver disease, BMSCs delay the process of liver cirrhosis and prevent the occurrence of HCC [84]. However, a number of studies have shown that BMSCs have the potential to exacerbatethe pathogenesis of tumors and cancer metastasis in situ via cell-cell interaction, secretion ofcytokines and growth factors [85]. Therefore, the exact role of BMSCs in cancer development and progression requires further discussion and evaluation before using this stem cells in clinicalpractice.Thus, many authors focused their attention on the role of adipose stem cells (ASCs). MSC from adipose tissue have been shown to differentiate into hepatocyte-like cells [86]. Transplantation experiments of hepatocytes generated from ASCs into injured nude mice revealed direct incorporation into the liver, which was confirmed by human albumin staining [87]. These findings suggest the possibility of the ASCs’ in vivo differentiation caused by a regeneration microenvironment. These results point to a possible alternative future therapy for patients with acute or chronic liver disease: the transplantation of autologous ASCs (Figure 4A,B).

CONCLUDING REMARKS

Research into the molecular biology of hepatocarcinogenesis has identified several biomarkers that could provide additional information for HCC biology and many of them have been shown to have potential predictive significance. The isolation and culture of hepatic cancer stem cells with stemness properties have an important implication for understanding the molecular mechanisms of liver tumorigenesis. A wide variety of molecular markers have been demonstrated to be excellent diagnostic tools for HCC but it is difficult to characterize HCC with a single biomarker.Thus, signatures of a combination of biomarkers may be more valuable for the diagnosis, staging and prognosis of HCC. Specifically, a correlation of HCC-CSCs phenotype to specific hepaticcancer subtypes and to specific clinical and pathological features has not yet been reported in human liver tumors. Briefly, recent evidence suggests that hepatocellular carcinoma (HCC) is organized by a subset of cells with stem cell features (CSCs) that are considered a pivotal target for eradication of cancer; liver CSCs have been identified through the use of various stem cell markers. In this review, we showed that, in primary HCC, the presence of EpCAM+ cells was associated withpoorly differentiated morphology and high serum alpha-fetoprotein (AFP). Since AFP levelcorrelates with the degree of HCC malignancy, these situations suggest that EpCAM tends to be expressed in more malignant HCC tissue, playing a role in HCC progression. Furthermore, studies have demonstrated that CD133’s expression was associated with absence of tumor capsule that prevent the spread of tumor cells. This suggests that CD133 tends to be expressed in tumorsshowing potential for invasion and metastasis. Besides, the presence of CD90+ and CD44+ cells was associated with a high incidence of distant organ metastasis. CD90 expression, again, is not only significantly higher in HCC tissues than in normal adult liver tissue, but it also correlates with a higher histopathologic grade and larger tumors. Hence, it was found that the expression of CD90 is related to the degree of differentiation, suggesting that CD90 is involved in the onset and/or progression of HCC.Postoperative relapse is the main cause of death for HCC patients in the long term, and most recurrences occur within two years after resection. Evidence suggests that CSCs may determine postoperative recurrence and metastasis. Besides, the prognosis of patients with HCC is still dismal.Pathological factors suggesting tumor invasiveness such as venous invasion, presence of satellite nodules, large tumor size, and advanced pTNM stage, are the best-established risk factors for relapse. In order to explore whether the expression of liver CSCs markers correlates with HCC oncogenesis, it is necessary to examine the potential associations between the CSC marker’s expression and the following HCC clinical and pathological variables such as age, BMI, serum markers (bilirubin, albumin, ALT, AST, GGT, prothrombin time, AFU), other serum markers (AFP, GP3, growth factors), tumor size, tumor capsule, cirrhosis, and Edmondson and Steiner grade. In addition to the clinical and pathological features, it is necessary to evaluate the correlation between CSCs’ markers and the overall survival rate (OS) by calculating the Kaplan-Meier survival curves. Preliminary studies performed by Guo Z et al [88] showed that the survival rate is higher in patients who were negative for CSCs markers.Future studies should aim to verify the insights from the existing literature and broaden them defining the optimal mixture of surface markers in order to identify and isolate HCC-CSCs. Besides, it would be very interesting if future studies aimed to explore how CSCs’ markers influence relapse and prognosis in HCC patients.

CONFLICT OF INTEREST

All authors of this manuscripts report no conflict of interest with respect to any financial or personal relationships with other people or organizations that could inappropriately influence our work.

• 1. Cillo U. Merging epidemiological changes and surveillance data to optimize management of hepatocellular carcinoma. Dig Liver Dis 2011; 43:841-842. https://doi.org/10.1016/j.dld.2011.08.026. [PubMed].
• 2. Llovet JM, Burroughs A, Bruix J. Hepatocellular carcinoma. Lancet 2003; 362:1907–1917. https://doi.org/10.1016/S0140-6736(03)14964-1. [PubMed].
• 3. Tarada T. Combined hepatocellular-cholangiocarcinoma with stem cell features, ductal plate malformation subtype: a case report and proposal of a new subtype. Int J Clin Exp Pathol 2013; 6:737-48. [PubMed].
• 4. Ma S, Chan KW, Hu L, Lee TK, Wo JY, Ng IO, Zheng BJ, Guan XY. Identification and characterization of tumorigenic liver cancer stem/progenitor cells. Gastroenterology 2009; 132:2542-2556. https://doi.org/10.1053/j.gastro.2007.04.025. [PubMed].
• 5. Clarke MF, Dick JE, Dirks PB, Eaves CJ, Jamieson CH, Jones DL, Visvader J, Weissman IL, Wahl GM. Cancer stem cells – perspectives on current status and future directions: AACR Workshop on cancer stem cells. Cancer Res 2006; 66:9339-44.
• 6. Tirino V, Desiderio V, Paino F, De Rosa A, Papaccio F, La Noce M, Laino L, De Francesco F, Papaccio G. Cancer stem cells in solid tumors: an overview and new approaches for their isolation and characterization. FASEB J 2013; 27:13-24. https://doi.org/10.1096/fj.12-218222. [PubMed].
• 7. Bonnet D, Dick JE. Human acute myeloid leukemia is organized as a hierarchy that originates from a primitive hematopoietic cell. Nat Med 1997; 3:730-737. https://doi.org/10.1038/nm0797-730. [PubMed].
• 8. Al-Hajj M, Wicha MS, Benito-Hernandez A, Morrison SJ, Clarke MF. Prospective identification of tumorigenic breast cancer cells. Proc Natl Acad Sci USA 2003; 100:3983–3988, 2003. https://doi.org/10.1073/pnas.0530291100. [PubMed].
• 9. Camerlingo R, Ferraro GA, De Francesco F, Romano M, Nicoletti G, Di Bonito M, Rinaldo M, D’Andrea F, Pirozzi G. The role of CD44+/CD24-/low biomarker for screening, diagnosis and monitoring of breast cancer. Oncol Rep 2014; 31:1127-32. https://doi.org/10.3892/or.2013.2943. [PubMed].
• 10. Singh SK, Clarke ID, Terasaki M, Bonn VE, Hawkins C, Squire J, Dirks PB. Identification of a cancer stem cell in human brain tumors. Cancer Res 2003; 63:5821– 5828.
• 11. Yu C, Yao Z, Jiang Y, Keller ET. Prostate cancer stem cell biology. Minerva Urol Nefrol 2012; 64:19-33. [PubMed].
• 12. Bapat SA. Human ovarian cancer stem cells. Reproduction 2010; 140:33-41. https://doi.org/10.1530/REP-09-0389. [PubMed].
• 13. Chu P, Clanton DJ, Snipas TS, Lee J, Mitchell E, Nguyen ML, Hare E, Peach RJ. Characterization of a subpopulation of colon cancer cells with stem cell-like properties. Int J Cancer 2009; 124:1312-21. https://doi.org/10.1002/ijc.24061. [PubMed].
• 14. Tirino V, Desiderio V, Paino F, De Rosa A, Papaccio F, Fazioli F, Pirozzi G, Papaccio G. Human primary bone sarcomas contain CD133+ cancer stem cells displaying high tumorigenicity in vivo. FASEB J 2011; 25:2022–2030. https://doi.org/10.1096/fj.10-179036. [PubMed].
• 15. Tirino V, Camerling R, Franco R, Malanga D, La Rocca A, Viglietto G, Rocco G, Pirozzi G. The role of CD133 in the identification and characterization of tumour-initiating cells in non-small-cell lung cancer. Eur J Cardiothorac Surg 2009; 36:446-453. https://doi.org/10.1016/j.ejcts.2009.03.063. [PubMed].
• 16. Chen J, Zhou J, Lu J, Xiong H, Shi X, Gong L. Significance of CD44 expression in head and neck cancer: a systemic review and meta-analysis. BMC Cancer 2014; 14:15, 2014. https://doi.org/10.1186/1471-2407-14-15. [PubMed].
• 17. Pannone G, Santoro A, Feola A, Bufo P, Papagerakis P, Lo Muzio L, Staibano S, Ionna F, Longo F, Franco R, Aquino G, Contaldo M, De Maria S et al. The role of E-cadherin down-regulation in oral cancer: CDH1 gene expression and epigenetic blockage. Curr Cancer Drug Targets. 2014; 14:115-27. https://doi.org/10.2174/1568009613666131126115012. [PubMed].
• 18. Lanthier N, Rubbia-Brandt L, Spahr L. Liver progenitor cells and therapeutic potential of stem cells in human chronic liver disease. Acta Gastroenterol Belg 2013; 76:3-9.
• 19. Theise ND, Saxena R, Portman BC, Thung SN, Yee H, Chiriboga L, Kumar A, Crawford JM. The canals of Hering and hepatic stem cells in human. Hepatology 1999; 30:1425-1433. https://doi.org/10.1002/hep.510300614. [PubMed].
• 20. Yamachita T, Wang XW. Cancer stem cells in the development of liver cancer. J Clin Invest 2013; 123:1911-1918. https://doi.org/10.1172/JCI66024. [PubMed].
• 21. Yoshikawa S, Zen Y, Fujii T, Sato Y, Ohta T, Aoyagi Y, Nakanuma Y. Characterization of CD133+ parenchymal cells in the liver: Histology and culture. World J Gastroenterol 2009; 15:4896-4906. https://doi.org/10.3748/wjg.15.4896. [PubMed].
• 22. Zhu Z, Hao X, Yan M, Yao M, Ge C, Gu J, Li J. Cancer stem/progenitor cells are highly enriched in CD133+/CD44+ population in hepatocellular carcinoma. Int J Cancer 2010; 126:2067-2078. https://doi.org/10.1002/ijc.24868. [PubMed].
• 23. Kokuryo T, Yokoyama Y, Nagino M. Recent advances in cancer stem cell research for cholangiocarcinoma. J Hepatobiliary Pancreat Sci 2012; 19:606-613, 2012. https://doi.org/10.1007/s00534-012-0542-6. [PubMed].
• 24. Iwahashi S, Utsunomiya T, Shimada M, Saito Y, Morine Y, Imura S, Ikemoto T, Mori H, Hanaoka J, Bando Y. High expression of cancer stem cell markers in cholangiocellular carcinoma. Surg Today 2013; 43:654-660, 2013. https://doi.org/10.1007/s00595-012-0437-9. [PubMed].
• 25. Ikeda H, Harada K, Sato Y, Sasaki M, Yoneda N, Kitamura S, Sudo Y, Ooi A, Nakanuma Y. Clinicopathologic significance of combined hepatocellular-cholangiocarcinoma with stem cell subtype components with reference to the expression of putative stem cell markers. Am J Clin Pathol 2013; 40:329-340. https://doi.org/10.1309/AJCP66AVBANVNTQJ. [PubMed].
• 26. Turner R, Lozoya O, Wang Y, Cardinale V, Gaudio E, Alpini G, Mendel G, Wauthier E, Barbier C, Alvaro D, Reid LM. Human hepatic stem cell and maturation liver lineage biology. Hepatology 2011; 53:1035-1045. https://doi.org/10.1002/hep.24157. [PubMed].
• 27. Zhang L, Theise N, Chua M, Reid LM. Human hepatic stem cells and hepatoblasts: symmetry between liver development and liver regeneration. Hepatology 2008; 8:1598-1607.
• 28. Haruna Y, Saito K, Spaulding S, Nalesnik MA, Gerber MA. Identification of bipotential progenitor cells in human liver development. Hepatology 1996; 23:476-481. https://doi.org/10.1002/hep.510230312. [PubMed].
• 29. Tan J, Hytiroglou P, Wieczorek R, Park YN, Thung SN, Arias B, Theise ND. Immunohistochemical evidence for hepatic progenitor cells in liver disease. Liver 2002; 22:365-373. https://doi.org/10.1034/j.1600-0676.2002.01622.x. [PubMed].
• 30. El-Serag HB, Rudolph KL. Hepatocellular carcinoma: epidemiology and molecular carcinogenesis. Gastroenterology 2007; 132:2557-2576. https://doi.org/10.1053/j.gastro.2007.04.061. [PubMed].
• 31. Lemaigre F, Zaret KS. Liver development update: new embryo models, cell lineage control, and morphogenesis. Curr Opin Genet Dev 2004; 14:582-90. https://doi.org/10.1016/j.gde.2004.08.004. [PubMed].
• 32. Mishra L, Banker T, Murray J, Byers S, Thenappan A, He AR, Shetty K, Johnson L, Reddy EP: Liver stem cells and hepatocellular carcinoma. Hepatology 2009; 49:318-29. https://doi.org/10.1002/hep.22704. [PubMed].
• 33. Roskams TA, Libbrecht L, Desmet VJ. Progenitor cells in diseased human liver. Semin Liver Dis. 2003; 23,385-96. https://doi.org/10.1055/s-2004-815564. [PubMed].
• 34. Kordes C, Haussinger D. Hepatic stem cell niches. J Clin Invest 2013; 123:1874-80. https://doi.org/10.1172/JCI66027. [PubMed].
• 35. Roskams T. Liver stem cells and their implication in hepatocellular and cholangiocarcinoma. Oncogene 2006; 25:3818-22. https://doi.org/10.1038/sj.onc.1209558. [PubMed].
• 36. Kim H, Choi GH, Na DC, Ahn EY, Kim GI, Lee JE, Cho JY, Yoo JE, Choi JS, Park YN. Human hepatocellular carcinomas with “Stemness”-related marker expression: keratin 19 expression and a poor prognosis. Hepatology 2011; 54:1707-17. https://doi.org/10.1002/hep.24559. [PubMed].
• 37. Ma S, Chan KW, Hu L, Lee TK, Wo JY, Ng IO, Zheng BJ, Guan XY. Identification and characterization of tumorigenic liver cancer stem/progenitor cells. Gastroenterology 2007; 132:2542-56. https://doi.org/10.1053/j.gastro.2007.04.025. [PubMed].
• 38. Ma S, Lee TK, Zheng BJ, Chan KW, Guan XY. CD133+ HCC cancer stem cells confer chemoresistance by preferential expression of the Akt/PKB survival pathway. Oncogene 2008; 27:1749-58. https://doi.org/10.1038/sj.onc.1210811. [PubMed].
• 39. Yang ZF, Ho DW, Ng MN, Lau CK, Yu WC, Ngai P, Chu PW, Lam CT, Poon RT, Fan ST. Significance of CD90+ cancer stem cells in human liver cancer. Cancer Cell 2008; 13:153-166. https://doi.org/10.1016/j.ccr.2008.01.013. [PubMed].
• 40. Yang ZF, Ngai P, Ho DW, Yu WC, Ng MN, Lau CK, Li ML, Tam KH, Lam CT, Poon RT, Fan ST. Identification of local and circulating cancer stem cells in human liver cancer. Hepatology 2008; 47:919-928. https://doi.org/10.1002/hep.22082. [PubMed].
• 41. Schmelzer E, Reid LM. EpCAM expression in normal, non-pathological tissues. Front Biosci 2008; 13:3096-3100. https://doi.org/10.2741/2911. [PubMed].
• 42. Kim JM, Ye Q, Forgues M. Cancer-associated molecular signature in the tissue samples of patients with cirrhosis. Hepatology 2004; 39:518-527. https://doi.org/10.1002/hep.20053. [PubMed].
• 43. Yamashita T, Budhu A, Forgues M, Wang XW. Activation of hepatic stem cell marker EpCAM by Wnt-beta-catenin signaling in hepatocellular carcinoma. Cancer Research 2007; 67:10831-10839. https://doi.org/10.1158/0008-5472.CAN-07-0908. [PubMed].
• 44. Yamashita T, Forgues M, Wang W. EpCAM and alpha-fetoprotein expression defines novel prognostic subtypes of hepatocellular carcinoma. Cancer Res 2008; 68:1451-61. https://doi.org/10.1158/0008-5472.CAN-07-6013. [PubMed].
• 45. Yamashita T, Ji J, Budhu A, Forgues M, Yang W, Wang HY, Jia H, Ye Q, Qin LX, Wauthier E, Reid LM, Minato H, Honda M, et al. EpCAM positive hepatocellular carcinoma are tumor-initiating cells with stem/progenitor cell features. Gastroenterology 2009; 136:1012-24.
• 46. Marrero JA. Hepatocellular carcinoma. Curr OpinGastroenterol 2005; 21:308-12.
• 47. Shi GM. Identification of side population cells in human hepatocellular carcinoma cell lines with stepwise metastatic potentials. J Cancer Res Clin Oncol 2008; 134:1155-1163. https://doi.org/10.1007/s00432-008-0407-1. [PubMed].
• 48. Haraguchi N, Ishii H, Mimori K, Tanaka F, Ohkuma M, Kim HM, Akita H, Takiuchi D, Hatano H, Nagano H, Barnard GF, Doki Y, Mori M. CD13 is a therapeutic target in human liver cancer stem cells. J Clin Invest 2010; 120:3326-3339. https://doi.org/10.1172/JCI42550. [PubMed].
• 49. Kim MA, Lee HS, Yang HK, Kim WH. Cytokeratin expression profile in gastric carcinomas. Hum Pathol 2004; 35:576-81. https://doi.org/10.1016/j.humpath.2003.12.007. [PubMed].
• 50. Gretschel S, Schick C, Schneider U, Estevez-Schwarz L, Bembenek A, Schlag PM. Prognostic value of cytokeratin-positive bone marrow cells of gastric cancer patients. Ann Surg Oncol 2007; 14:373-80. https://doi.org/10.1245/s10434-006-9039-3. [PubMed].
• 51. Govaere O, Komuta M, Berkers J, Spee B, Janssen C, de Luca F, Katoonizadeh A, Wouters J, van Kempen LC, Durnez A, Verslype C, De Kock J, Rogiers V, et al. Keratin 19: a key role player in the invasion of human hepatocellular carcinomas. Gut 2014; 63:674-85. https://doi.org/10.1136/gutjnl-2012-304351. [PubMed].
• 52. Ding SJ, Li Y, Tan YX, Jiang MR, Liu YK, Shao XX, Ye SL, Wu JR, Zeng R, Wang HY, Tang ZY, Xia QC. From proteomic analysis to clinical significance: overexpression of cytokeratin 19 correlates with hepatocellular carcinoma metastasis. Mol Cell Proteomics 2004; 3:73-81. https://doi.org/10.1074/mcp.M300094-MCP200. [PubMed].
• 53. Farinati F, Marino D, De Giorgio M, Baldan A, Cantarini M, Cursaro C, Rapaccini G, Del Poggio P, Di Nolfo MA, Benvegnù L, Zoli M, Borzio F, Bernardi M, Trevisani F. Diagnostic and prognostic role of alpha-fetoprotein in hepatocellular carcinoma: both or neither? Am J Gastroenterol 2006; 101:524-32. https://doi.org/10.1111/j.1572-0241.2006.00443.x. [PubMed].
• 54. Li D, Mallory T, Satomura S. AFP-L3: a new generation of tumor marker for hepatocellular carcinoma. Clin Chim Acta 2001; 313:15-9. https://doi.org/10.1016/s0009-8981(01)00644-1. [PubMed].
• 55. Marquardt JU, Galle PR, Teufel A. Molecular diagnosis and therapy of hepatocellular carcinoma (HCC): an emerging field for advanced technologies. J Hepatol 2012; 56:267-75. https://doi.org/10.1016/j.jhep.2011.07.007. [PubMed].
• 56. Budhu A, Ji J, Wang XW. The clinical potential of microRNAs. J Hematol Oncol 2010; 3:37. https://doi.org/10.1186/1756-8722-3-37. [PubMed].
• 57. Zhu K, Dai Z, Zhou J. Biomarkers for hepatocellular carcinoma: progression in early diagnosis, prognosis, and personalized therapy. Biomark Res 2013; 1:10. https://doi.org/10.1186/2050-7771-1-10. [PubMed].
• 58. Zhang Y, Shi ZL, Yang X, Yin ZF. Targeting of circulating hepatocellular carcinoma cells to prevent postoperative recurrence and metastasis. World J Gastroenterol 2014; 20:142-7. https://doi.org/10.3748/wjg.v20.i1.142. [PubMed].
• 59. Lopez-Munoz E, Mendez-Montes M. Markers of circulating breast cancer cells. Adv Clin Chem 2013; 61:175-224. https://doi.org/10.1016/b978-0-12-407680-8.00007-5. [PubMed].
• 60. Franco R, Cantile M, Marino FZ, Pirozzi G. Circulating tumor cells as emerging tumour biomarkers in lung cancer. J Thorac Dis 2012; 4:438-9. https://doi.org/10.3978/j.issn.2072-1439.2012.08.23. [PubMed].
• 61. Romero-Laorden N, Olmos D, Fehm T, Garcia-Donas J, Diaz-Padilla I. Circulating and disseminated tumor cells in ovarian cancer: a systematic review. Gynecol Oncol 2014; 133:632-9. https://doi.org/10.1016/j.ygyno.2014.03.016. [PubMed].
• 62. Khoja L, Lorigan P, Dive C, Keilholz U, Fusi A. Circulating tumor cells as biomarkers in melanoma: detection methods and clinical relevance. Ann Oncol 2015; 26:33-39. https://doi.org/10.1093/annonc/mdu207. [PubMed].
• 63. Sun YF, Xu Y, Yang XR, Guo W, Zhang X, Qiu SJ, Shi RY,Hu B, Zhou J, Fan J. Circulating stem cell-like epithelial cell adhesion molecule-positive tumor cells indicate poor prognosis of hepatocellular carcinoma after curative resection. Hepatology 2013; 57:1458-68. https://doi.org/10.1002/hep.26151. [PubMed].
• 64. Lu JW, Chang JG, Yeh KT, Chen RM, Tsai JJ, Hu RM. Overexpression of Thy1/CD90 in human hepatocellular carcinoma is associated with HBV infection and poor prognosis. Acta Histochem 2011; 11:833-838. https://doi.org/10.1016/j.acthis.2011.01.001. [PubMed].
• 65. Zheng YW, Tsuchida T, Shimao T, Li B, Takebe T, Zhang RR, Sakurai Y, Ueno Y, Sekine K, Ishibashi N, Imajima M, Tanaka T, Taniguchi H. The CD133+CD44+ precancerous subpopulation of oval cells is a therapeutic target for hepatocellular carcinoma. Stem Cells Dev 2014; 23:2237-49. https://doi.org/10.1089/scd.2013.0577. [PubMed].
• 66. Sasaki A, Kamiyama T, Yokoo H, Nakanishi K, Kubota K, Haga H, Matsushita M, Ozaki M, Matsuno Y, Todo S. Cytoplasmic expression of CD133 is an important risk factor for overall survival in hepatocellular carcinoma. Oncology Reports 2010; 24:537-546. https://doi.org/10.3892/or_00000890. [PubMed].
• 67. Chan AW, Tong JH, Chan SL, Lai PB, To KF. Expression of stemness markers (CD133 and EpCAM) in prognostication of hepatocellular carcinoma. Histopathology. 2014; 64:935-50. https://doi.org/10.1111/his.12342. [PubMed].
• 68. Song W, Li H, Tao K, li R, song Z, Zhao Q, Zhang F, Dou K. Expression and clinical significance of the stem cell marker CD133 in hepatocellular carcinoma. Int J Clin Pract. 2008; 62:1212-8. https://doi.org/10.1111/j.1742-1241.2008.01777.x. [PubMed].
• 69. Hirohashi K, Yamamoto T, Uenishi T, Ogawa M, Sakabe K, Takemura S, Shuto T, Tanaka H, Kubo S, Kinoshita H. CD44 and VEGF expression in extrahepatic metastasis of human hepatocellular carcinoma. Hepatogastroenterology 2004; 51:1121-1123. [PubMed].
• 70. Yang XR, Xu Y, Yu B, Zhou J, Li JC, Qiu SJ, Shi YH, Wang XY, Dai Z, Shi GM, Wu B, Wu LM, Yang GH, et al. CD24 is a novel predictor for poor diagnosis of hepatocellular carcinoma after surgery. Clin Cancer Res 2009; 15:5518-5527. https://doi.org/10.1158/1078-0432.CCR-09-0151. [PubMed].
• 71. Ji J, Wang XW. Clinical implications of cancer stem cell biology in hepatocellular carcinoma. Semin Oncol 2012; 39:461-72. https://doi.org/10.1053/j.seminoncol.2012.05.011. [PubMed].
• 72. Yamashita T, Honda M, Nakamoto Y, Baba M, Nio K, Hara Y, Zeng SS, Hayashi T, Kondo M, Takatori H, Yamashita T, Mizukoshi E, Ikeda H, et al. Discrete nature of EpCAM+ and CD90+ cancer stem cells in human hepatocellular carcinoma. Hepatology 2013; 57:1484-97. https://doi.org/10.1002/hep.26168. [PubMed].
• 73. Cervello M, McCubrey JA, Cusimano A, Lampiasi N, Azzolina A, Montalto G. Target therapy for hepatocellular carcinoma: novel agents on the horizon. Oncotarget. 2012; 3: 236-60. https://doi.org/10.18632/oncotarget.466. [PubMed].
• 74. Marquardt JU, Factor VM, Thorgeirsson SS. Epigenetic regulation of cancer stem cells in liver cancer: current concepts and clinical implications. J Hepatol 2010; 53:568-77. https://doi.org/10.1016/j.jhep.2010.05.003. [PubMed].
• 75. Oom AL, Humphries BA, Yang C. MicroRNAs: novel players in cancer diagnosis and therapies. Biomed Res Int 2014; 2014:959461. https://doi.org/10.1155/2014/959461. [PubMed].
• 76. Li X, Yang W, Lou L, Chen Y, Wu S, Ding G. microRNAs: a promising diagnostic biomarker and therapeutic target for hepatocellular carcinoma. Dig Dis Res 2014; 59:1099-107. https://doi.org/10.1007/s10620-013-3006-1. [PubMed].
• 77. Takahashi K, Yan I, Wen HJ, Patel T. microRNAs in liver disease: from diagnostics to therapeutics. Clin Biochem 2013; 46:946-52. https://doi.org/10.1016/j.clinbiochem.2013.01.025. [PubMed].
• 78. Callegari E, Gramantieri L, Domenicali M, D’Abundo L, Sabbioni S, Negrini M. MicroRNAs in liver cancer: a model for investigating pathogenesis and novel therapeutic approaches. Cell Death Differ 2015; 22:46-57. https://doi.org/10.1038/cdd.2014.136. [PubMed].
• 79. Ishikawa T, Banas A, Teratani T, Iwaguro H, Ochiya T. Regenerative cells for transplantation in hepatic failure. Cell Transplantation 2012; 21:387-399. https://doi.org/10.3727/096368911X605286. [PubMed].
• 80. Pittenger MF, Mackay AM, Beck SC, Jaiswal RK, Douglas R, Mosca J, Moorman MA, Simonetti DW, Craig S, Marshak DR. Multilineage potential of adult human mesenchymal stem cells. Science 1999; 284:143-147. https://doi.org/10.1126/science.284.5411.143. [PubMed].
• 81. Nicoletti GF, De Francesco F, D’Andrea F, Ferraro GA. Methods and procedures in adipose stem cells: state of the art and perspective for translation medicine. J Cell Physiol 2015; 230:489-95. https://doi.org/10.1002/jcp.24837. [PubMed].
• 82. De Francesco F, Tirino V, Desiderio V, Ferraro G, D’Andrea F, Giuliano M, Libondi G, Pirozzi G, De Rosa A, Papaccio G. Human CD34/CD90 ASCs are capable of growing as sphere clusters, producing high levels of VEGF and forming capillaries. PLoS One 2009; 4:e6537. https://doi.org/10.1371/journal.pone.0006537. [PubMed].
• 83. Ferraro GA, De Francesco F, Nicoletti G, Paino F, Desiderio V, Tirino V, D’Andrea F. Human adipose CD34+CD90+ stem cells and collagen scaffold constructs grafted in vivo fabricate loose connective and adipose tissues. J Cell Biochem 2013; 114:1039-1049. https://doi.org/10.1002/jcb.24443. [PubMed].
• 84. Li T, Zhu J, Ma K, Liu N, Feng K, Li X, Wang S, Bie P. Autologous bone marrowderived mesenchymal stem cell transplantation promotes liver regeneration after portal vein embolization in cirrhotic rats. J Surg Res 2013; 184:1161-1173. https://doi.org/10.1016/j.jss.2013.04.054. [PubMed].
• 85. Bergfeld SA, DeClerk YA. Bone marrow-derived mesenchymal stem cells and the tumor microenvironment. Cancer Metastasis Rev 2010; 29:249-261. https://doi.org/10.1007/s10555-010-9222-7. [PubMed].
• 86. Al Battah F, De Kock J, Vanhaecke T, Rogiers V. Current status of human adiposederived stem cells: differentiation into hepatocyte-like cells. The Scientific World Journal 2011; 11:1568-1581. https://doi.org/10.1100/tsw.2011.146. [PubMed].
• 87. Koellensperger E, Niesen W, Kolbenschlag J, Gramley F, Germann G, Leimer U. Human Adipose tissue derived stem cells promote liver regeneration in a rat model of toxic injury. Stem Cells Int, 2013; 2013:534263. https://doi.org/10.1155/2013/534263. [PubMed].
• 88. Guo Z, Li LQ, Jiang JH, Ou C, Zeng LX, Xiang BD. Cancer stem cell markers correlate with early recurrence and survival in hepatocellular carcinoma. World J Gastroenterol 2014; 20:2098-106. https://doi.org/10.3748/wjg.v20.i8.2098. [PubMed].
